GDQ-J-A(b) series


Normally closed pneumatic high vacuum flapper valve (with bellows seal)

GDQ-J-A (b) series normally closed pneumatic high vacuum baffle valves are sealed with bellows. The valve is powered by compressed air, changes the direction of the gas path through the electromagnetic reversing valve, pushes the cylinder piston to move up and down, drives the valve stem to move up and down, and makes the valve plate open or close, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum system. The valve has a series of advantages such as stable operation, reliable sealing and long service life, and is one of the preferred valves for automation of vacuum equipment. The applicable medium of the valve is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Normally closed pneumatic high vacuum flapper valve (with bellows seal)
    • Commodity ID: B-005
    • 型号: GDQ-J-A(b) series

    GDQ-J-A (b) series normally closed pneumatic high vacuum baffle valves are sealed with bellows. The valve is powered by compressed air, changes the direction of the gas path through the electromagnetic reversing valve, pushes the cylinder piston to move up and down, drives the valve stem to move up and down, and makes the valve plate open or close, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum system. The valve has a series of advantages such as stable operation, reliable sealing and long service life, and is one of the preferred valves for automation of vacuum equipment. The applicable medium of the valve is air and non-corrosive gas.

    • Applicable range (Pa)105~1.3X10-6
    • Valve leakage rate (Pa.L/S)≤1.3×10-7
    • Applicable temperature (℃) -25~+ 40
    • Air source pressure (Mpa) 0.4~0.8
    • Flange standard GB4982
    • Any installation position
    • Power supply voltage standard factory: AC220V/50Hz Special designation: ①AC110V; ②DC24V; ③DC12V, etc.
    • Signal feedback standard factory: without feedback signal Special designation: magnetic switch DC/AC5~240V



  •

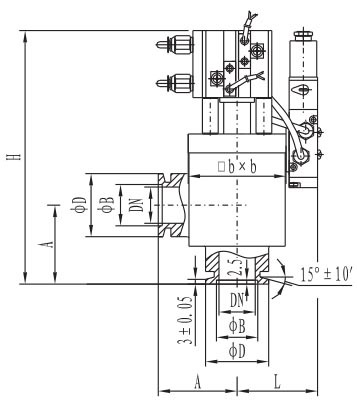

    Connection and Dimensions

    modle

    diameter (DN)

    ΦD

    ΦB

    H

    A

    L

    b×b

    GDQ-J10A(b)

    10

    30

    12.2

    139

    40

    40

    40×40

    GDQ-J16A(b)

    16

    30

    17.2

    139

    40

    40

    40×40

    GDQ-J25A(b)

    25

    40

    26.2

    161

    50

    51

    62×62

    GDQ-J40A(b)

    40

    55

    41.2

    191

    65

    60

    80×80



  • File size: 167.0KB

Keyword:

Ultra high vacuum flapper valve

High vacuum flapper valve

Ordinary type high vacuum (pressure) ball valve

Type a high vacuum(pressure)ball valve

Butterfly valve

Vacuum charging valve Vacuum electromagnetic pressure difference type charging valve

Trimming valve

The diaphragm valve

Flow monitor

Vacuum pipeline accessories
