CC series


Manual ultra-high vacuum gate valve

The CC series ultra-high vacuum plug-in valve is driven by a screw through the handwheel, and the connecting rod mechanism is pushed (pull) by the transmission rod to drive the valve plate to move in the axial direction, so as to realize the opening or closing of the valve, so as to achieve ultra-high vacuum The purpose of turning on or off the flow of air in the system. It is reasonable in structural design, beautiful in appearance, stable in action, small in size, large in flow rate, reliable in use, good in sealing performance and long in life, and can be widely used in ultra-high vacuum equipment. The applicable working medium is clean air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Manual ultra-high vacuum gate valve
    • Commodity ID: A-001
    • 型号: CC series

    The CC series ultra-high vacuum plug-in valve is driven by a screw through the handwheel, and the connecting rod mechanism is pushed (pull) by the transmission rod to drive the valve plate to move in the axial direction, so as to realize the opening or closing of the valve, so as to achieve ultra-high vacuum The purpose of turning on or off the flow of air in the system. It is reasonable in structural design, beautiful in appearance, stable in action, small in size, large in flow rate, reliable in use, good in sealing performance and long in life, and can be widely used in ultra-high vacuum equipment. The applicable working medium is clean air and non-corrosive gas.

    • Applicable range (Pa) 10^5~1.3X10-7
    • Valve leakage rate (Pa.L/S) ≤1.3X10-7 when DN≤200, ≤6.7x10-7 when DN≥250
    • Valve baking temperature (C) ≤150 (except transmission)
    • When the valve is open, the pressure difference on both sides of the valve plate (Pa) ≤2.7X103
    • Valve plate seal standard factory fluorine rubber
    • Seal at the shaft seal Stainless steel bellows
    • Installation position stainless steel bellows

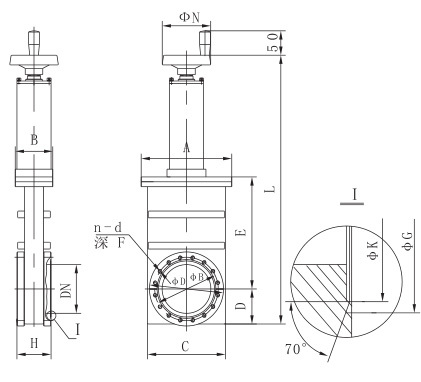

  • Dimensions



    model diameter(DN) A B C D E L φN F
    CC-63 63 130 64 124 54 170 380 100 50
    CC-80 80 166 77 140 61 210 530 100 50
    CC-100 100 186 77 160 72 230 552 100 50
    CC-150 150 234 77 207 96 307 673 125 63
    CC-200 200 280 77 254 121 382 776 125 63
    CC-250 250 342 80 312 148 462 892 200 80



    (Figure 1) GB-LP flange connection size



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    ΦD 68 85 105 165 208 258 328 410
    G 2.4 2.4 2.4 2.4 3.6 3.6 4.8 4.8
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    F 14 12 11.5 16 16 15 16 16
    I.D 67 85 106 165 206 258 325 406
    d 3.55 3.55 3.55 3.55 5.3 5.3 7 7



    (Figure 2) ISO-F flange connection dimensions



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    G 3 3 3 3 3 3 4.5 4.5
    ΦD 10.2 83.2 102.2 153.2 213.2 261.2 325 400.2
    F 10 10 15 15 15 15 16 16



    (Figure 3) CF flange connection size



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320
    diameter (DN) 63 80 100 150 200 250 320
    A 66 70 70 78 80 92 120
    ΦB 114 130 152 202 253 305 425
    ΦC 92.2 110 130.3 181 231.8 284 338.1
    ΦK 82.4 99 120.6 171.4 222.1 273.1 326.4
    ΦG 77 93 115 166 217 267 320
    n-d 8-M8 16-M8 16-M8 20-M8 24-M8 32-M8 32-M10
    F 11 13 12 14 14 15 18
