CCQ series


Pneumatic ultra-high vacuum gate valve

The CCQ series pneumatic ultra-high vacuum plug-in valve uses compressed air as the power, changes the direction of the gas path through the electromagnetic reversing valve, pushes the cylinder piston, and pushes (pulls) the connecting rod mechanism through the transmission rod to drive the valve plate along the axial direction. Movement to realize the opening or closing of the valve plate, so as to achieve the purpose of connecting or cutting off the air flow in the ultra-vacuum system. It is reasonable in structure design, beautiful in appearance, stable in action, small in size, large in flow channel, reliable in use, good in sealing performance and long in life, and can be widely used in ultra-high vacuum equipment. The applicable working medium is clean air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Pneumatic ultra-high vacuum gate valve
    • Commodity ID: A-002
    • 型号: CCQ series

    The CCQ series pneumatic ultra-high vacuum plug-in valve uses compressed air as the power, changes the direction of the gas path through the electromagnetic reversing valve, pushes the cylinder piston, and pushes (pulls) the connecting rod mechanism through the transmission rod to drive the valve plate along the axial direction. Movement to realize the opening or closing of the valve plate, so as to achieve the purpose of connecting or cutting off the air flow in the ultra-vacuum system. It is reasonable in structure design, beautiful in appearance, stable in action, small in size, large in flow channel, reliable in use, good in sealing performance and long in life, and can be widely used in ultra-high vacuum equipment. The applicable working medium is clean air and non-corrosive gas.

    • Applicable range (Pa) 105~1.3X10-7
    • Valve leakage rate (Pa.L/S) ≤1.3X10-7 when DN≤200, ≤6.7x10-7 when DN≥250
    • Valve baking temperature (C) ≤150 (except transmission)
    • When the valve is open, the pressure difference on both sides of the valve plate (Pa) ≤2.7X103
    • Air source pressure (MPa)≤0.4~0.7
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: ①AC110V; ②DC24V; ③DC12V, etc.
    • Signal feedback Standard factory: without feedback signal Special designation: magnetic switch DC/AC5~240V
    • Installation position any
  •

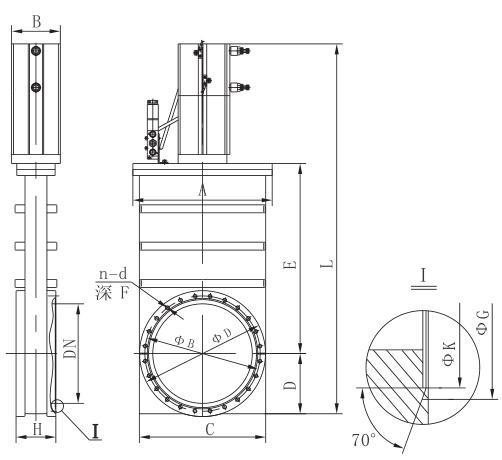

    Connection and Dimensions



    model diameter (DN)) A B C D E L
    CCQ-50/KF 50 98 64 88 41 153 337
    CCQ-63 63 150 64 124 54 170 394
    CCQ-80 80 166 77 140 61 210 450
    CCQ-100 100 186 77 160 72 230 490
    CCQ-150 150 234 77 207 96 307 626
    CCQ-200 200 280 98 254 121 382 750
    CCQ-250 250 342 117 312 148 462 812
    CCQ-320 320 445 117 425 212.5 667.5 1284
    CCQ-400 400 536 140 512 256 810 1595



    (Figure 1) GB-LP flange connection size



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    ΦD 68 85 105 165 208 258 328 410
    G 2.4 2.4 2.4 2.4 3.6 3.6 4.8 4.8
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    F 14 12 11.5 16 16 15 16 16
    I.D 67 85 106 165 206 258 325 406
    d 3.55 3.55 3.55 3.55 5.3 5.3 7 7



    (Figure 2) ISO-F flange connection dimensions



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    G 3 3 3 3 3 3 4.5 4.5
    ΦD 10.2 83.2 102.2 153.2 213.2 261.2 325 400.2
    F 10 10 15 15 15 15 16 16



    (Figure 3) CF flange connection size



    model CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320
    diameter (DN) 63 80 100 150 200 250 320
    A 66 70 70 78 80 92 120
    ΦB 114 130 152 202 253 305 425
    ΦC 92.2 110 130.3 181 231.8 284 338.1
    ΦK 82.4 99 120.6 171.4 222.1 273.1 326.4
    ΦG 77 93 115 166 217 267 320
