GDC-J series


Electromagnetic high vacuum flapper valve

GDCJ series electromagnetic high vacuum flapper valve is used to open or close the valve by electromagnetic force and spring return force. It is suitable for opening or blocking air flow in vacuum system. When the valve is closed, the upper side of the sealing surface of the valve plate is allowed to bear high pressure, and the lower side is vacuum. In this state, the valve plate can be opened normally after the power supply of the electrical control box is turned on. The applicable working medium is air, non-corrosive gas and gas without particle dust.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electromagnetic high vacuum flapper valve
    • Commodity ID: B-002
    • 型号: GDC-J series

    GDCJ series electromagnetic high vacuum flapper valve is used to open or close the valve by electromagnetic force and spring return force. It is suitable for opening or blocking air flow in vacuum system. When the valve is closed, the upper side of the sealing surface of the valve plate is allowed to bear high pressure, and the lower side is vacuum. In this state, the valve plate can be opened normally after the power supply of the electrical control box is turned on. The applicable working medium is air, non-corrosive gas and gas without particle dust.

    • Applicable range (Pa) 105~6.7X10-4
    • Valve leakage rate (Pa.L/S) ≤6.7x10-4
    • Applicable temperature (°C) -25—+40
    • Coil temperature rise (°C) <65
    • Opening and closing time (S) 3~5
    • Power supply voltage (V/Hz) 220/50
    • Solenoid valve controller starting current 195V-maintaining current 94V
    • Installation method Vertical




  •

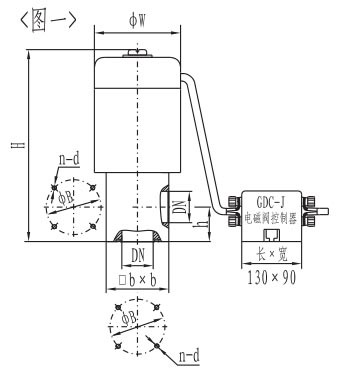

    ●(Figure 1) Connection and Dimensions



    modle

    diameter (DN)

    ΦW

    ΦB

    H

    h

    b×b

    n-d

    Flange standard

    GDC-J16A

    16

    68

    42

    165

    28

    48×48

    4-M5

    JB919-75

    GDC-J25A

    25

    82

    55

    190

    35

    58×58

    4-M6

    GDC-J32

    32

    92

    64

    217

    40

    68×68

    4-M6

    GDC-J40

    40

    110

    70

    240

    44

    80×80

    4-M6

    GDC-J50A

    50

    125

    90

    285

    56

    95×95

    4-M8

    GDC-J65

    65

    135

    105

    315

    65

    115×115

    4-M8

    GDC-J80

    80

    165

    125

    358

    75

    140×140

    4-M8

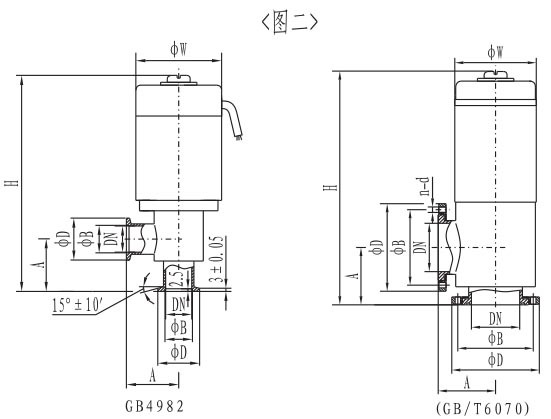

    ●(Picture 2) Connection and Dimensions



    model diameter (DN)

    ΦW

    ΦD

    ΦB

    H

    A

    n-d

    Flange standard

    GDC-J16B/KF

    16

    68

    30

    17.2

    191

    40

    /

    GB4982

    GDC-J25B/KF

    25

    82

    40

    26.2

    202

    50

    GDC-J32B/KF

    32

    92

    55

    41.2

    244

    50

    GDC-J40B/KF

    40

    110

    55

    41.2

    275

    65

    GDC-J50B/KF

    50

    125

    75

    52.2

    308

    80

    /

    GDC-J50B

    50

    125

    110

    90

    308

    80

    4-Φ9

    GB/T6070

    GDC-J65B

    65

    135

    130

    110

    338

    88

    GDC-J80B

    80

    165

    145

    125

    390

    95

    8-Φ9

    GDC-J100B

    100

    165

    165

    145

    393

    108
