GDC-J(b) /KF Series


Backpack type electromagnetic high vacuum baffle valve

GDC-J(b)/KF Backpack Electromagnetic High Vacuum Flapper Valve is a device that is activated and closed by an electromagnetic drive valve to connect or cut off the vacuum pipeline. It is usually used as a vacuum shut-off valve or an inflation valve in the vacuum pipeline. effect. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Backpack type electromagnetic high vacuum baffle valve
    • Commodity ID: B-001
    • 型号: GDC-J(b) /KF Series

    GDC-J(b)/KF Backpack Electromagnetic High Vacuum Flapper Valve is a device that is activated and closed by an electromagnetic drive valve to connect or cut off the vacuum pipeline. It is usually used as a vacuum shut-off valve or an inflation valve in the vacuum pipeline. effect. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa) 105~6.7X10-5
    • Valve leakage rate (Pa.L/S) ≤1.3X10-5
    • Medium temperature (°C) -30~+150
    • Coil temperature rise (°C) ≤1S
    • Power supply voltage (V/Hz) AC220V±10%/50Hz
    • Installation status any
    • Working frequency ≤6 times/min
    • Power consumption Instantaneous start ≤ 2000w, maintain 10w
    • Opening pressure difference ≤0.11MPa (can be reversed to the atmosphere)
    • Starting peak current (0.4 seconds) max current≤12A



    • Main parts materials



    Valve body: stainless steel Valve plate: stainless steel Valve core: stainless steel Seal: Viton bellows shaft seal



  •

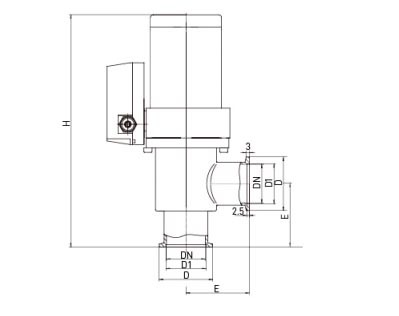

    ●Outline and flange connection size



    modle diameter (DN) D D1 E H Quick release flange connection
    GDC-J16b 16 30 17.2 40 155 GB4982-2003
    GDC-J25b 25 40 26.2 50 175
    GDC-J40b 40 55 41.2 65 210
