GU series


Vacuum (pressure) ball valve

GU series vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is a straight-through manual ball valve, which is sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed at any position. The applicable working medium is gas or liquid with acid and alkali.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Vacuum (pressure) ball valve
    • Commodity ID: C-001
    • 型号: GU series

    GU series vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is a straight-through manual ball valve, which is sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed at any position. The applicable working medium is gas or liquid with acid and alkali.

    • Scope of application (Pa) Quick release flange (KF) 2×105 ~1.3×10-5 Loose flange 6×105 ~1.3×10-5
    • Valve leakage rate (Pa.L/S) ≤1.3×10-6
    • Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
    • Any installation position
    • Flange standard GB4982; GB/T607



  •

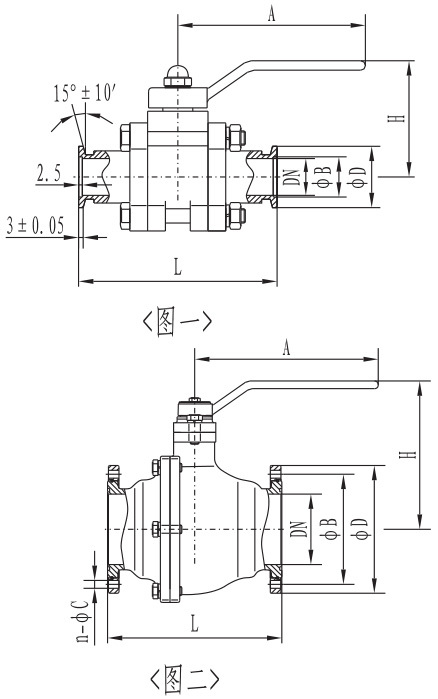

    (Figure 1) Quick release flange (KF) connection and dimensions (GB4982)



    modle

    diameter (DN)

    ΦD

    ΦB

    H

    L

    A

    GU-10/KF

    10

    30

    12.2

    60

    92

    120

    GU-16/KF

    16

    30

    17.2

    62

    100

    120

    GU-25/KF

    25

    40

    26.2

    81

    114

    152

    GU-40/KF

    40

    55

    41.2

    125

    165

    210

    GU-50/KF

    50

    75

    52.2

    135

    175

    230



    (Picture 2) Loop flange connection and dimensions (GB/T6070)



    modle

    diameter (DN)

    ΦD

    ΦB

    H

    L

    A

    n-ΦC

    GU-10

    10

    55

    40

    60

    92

    120

    4-Φ6.5

    GU-16

    16

    60

    45

    62

    100

    120

    GU-20

    20

    65

    50

    73

    114

    152

    GU-25

    25

    70

    55

    81

    114

    152

    GU-32

    32

    90

    70

    103

    140

    190

    4-Φ9

    GU-40

    40

    100

    80

    125

    165

    210

    GU-50

    50

    110

    90

    142

    175

    231

    GU-63

    63

    130

    110

    176

    186

    240

    GU-80

    80

    145

    125

    185

    198

    300

    8-Φ9

    GU-100

    100

    165

    145

    199

    220

    360

    GU-125

    125

    200

    175

    232

    266

    370

    8-Φ11

    GU-150

    150

    225

    200

    250

    296

    410

    GU-200

    200

    285

    260

    306

    390

    710

    12-Φ11
