GUQ series


Pneumatic vacuum (pressure) ball valve

GUQ series pneumatic vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is powered by compressed air. By controlling the pneumatic components to change the direction of the air path, push the mechanical transmission of the piston rack and gear, and output the torque with the angular stroke to drive the ball valve to do the opening and closing movement. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The cylinder is divided into double-acting and single-acting (spring return), optional feedback signal device and electric valve positioner. The applicable working medium is gas or liquid with acid and alkali.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Pneumatic vacuum (pressure) ball valve
    • Commodity ID: C-002
    • 型号: GUQ series

    GUQ series pneumatic vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is powered by compressed air. By controlling the pneumatic components to change the direction of the air path, push the mechanical transmission of the piston rack and gear, and output the torque with the angular stroke to drive the ball valve to do the opening and closing movement. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The cylinder is divided into double-acting and single-acting (spring return), optional feedback signal device and electric valve positioner. The applicable working medium is gas or liquid with acid and alkali.

    • Scope of application (Pa) Quick release flange (KF) 2×105 ~1.3×10-6 Loose flange 6×105 ~1.3×10-6
    • Valve leakage rate (Pa.L/S) ≤1.3×10-6
    • Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
    • Air source pressure (MPa) 0.4~0.8
    • Flange standard GB4982; GB/T6070
    • Installation position any
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: ①AC110V; ②DC24V; ③DC12V, etc.
    • Signal feedback Standard factory: valve position indicator Special designation: Optional ① micro switch ② intelligent 4~20mA DC ③ explosion-proof micro switch
    • Cylinder optional Standard factory: double-acting Special designation: single-acting (with spring return) optional normally open or normally closed



  •

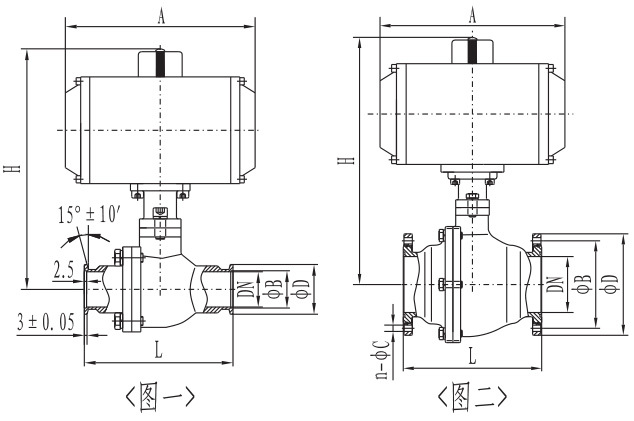

    (Figure 1) Quick release flange (KF) connection and dimensions (GB4982)

    modle

    diameter(DN)

    ΦD

    ΦB

    H

    L

    A

    GUQ-10/KF

    10

    30

    12.2

    169

    92

    154

    GUQ-16/KF

    16

    30

    17.2

    171

    100

    154

    GUQ-25/KF

    25

    40

    26.2

    186

    114

    189

    GUQ-40/KF

    40

    55

    41.2

    264

    165

    264

    GUQ-50/KF

    50

    75

    52.2

    297

    175

    266



    (Picture 2) Loop flange connection and dimensions (GB/T6070)



    modle

    diameter(DN)

    ΦD

    ΦB

    H

    L

    A

    n-ΦC

    GUQ-10

    10

    55

    40

    169

    92

    154

    4-Φ6.5

    GUQ-16

    16

    60

    45

    171

    100

    154

    GUQ-20

    20

    65

    50

    186

    114

    189

    GUQ-25

    25

    70

    55

    186

    114

    189

    GUQ-32

    32

    90

    70

    228

    140

    229

    4-Φ9

    GUQ-40

    40

    100

    80

    264

    165

    264

    GUQ-50

    50

    110

    90

    297

    175

    266

    GUQ-63

    63

    130

    110

    309

    186

    266

    GUQ-80

    80

    145

    125

    356

    198

    337

    8-Φ9

    GUQ-100

    100

    165

    145

    385

    220

    337

    GUQ-125

    125

    200

    175

    451

    266

    412

    8-Φ11

    GUQ-150

    150

    225

    200

    504

    296

    490

    GUQ-200

    200

    285

    260

    626

    390

    602

    12-Φ11



  • File size: 150.9KB

Keyword:

Ultra high vacuum flapper valve

High vacuum flapper valve

Ordinary type high vacuum (pressure) ball valve

Type a high vacuum(pressure)ball valve

Butterfly valve

Vacuum charging valve Vacuum electromagnetic pressure difference type charging valve

Trimming valve

The diaphragm valve

Flow monitor

Vacuum pipeline accessories
