GU-A series


Manual Vacuum (Pressure) Ball Valve

GU-A series vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is a straight-through manual ball valve, which is sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed at any position. Applicable working medium is gas or liquid with acid and alkali

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Manual Vacuum (Pressure) Ball Valve
    • Commodity ID: C-004
    • 型号: GU-A series

    GU-A series vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is a straight-through manual ball valve, which is sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed at any position. Applicable working medium is gas or liquid with acid and alkali



    • Scope of application (Pa) Quick release flange (KF) 2×105 ~1.3×10-6 Loose flange 6×105 ~1.3×10-6
    • Valve leakage rate (Pa.L/S) ≤1.3×10-6
    • Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
    • Installation position any


    ●Main parts materials

    Body Ball 304 or 316L Seal Reinforced PTFE





  •

    (Figure 1) Outline and quick release flange connection dimensions



    modle diameter(DN) φD φB H L A Flange standard
    GU-10A/KF 10 30 12.2 95 92 125 GB/T4982-2003
    GU-16A/KF 16 30 17.2 95 100 125 GB/T4982-2003
    GU-25A/KF 25 40 26.2 105 114 140 GB/T4982-2003
    GU-32A/KF 32 55 41.2 125 140 160 /
    GU-40A/KF 40 55 41.2 130 160 160 GB/T4982-2003
    GU-50A/KF 50 75 52.2 135 175 160 /

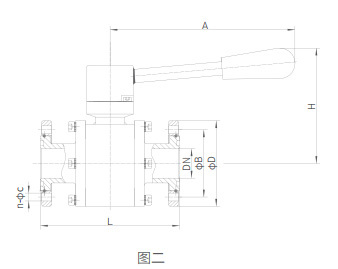

    (Picture 2) Outline and size of looper flange connection



    modle diameter(DN) φD φB H L A n-φc Flange standard
    GU-10A 10 55 40 95 92 125 4-q)6.5 GB/T6070-1995
    GU-16A 16 60 45 95 100 125 4-(p6.5
    GU-20A 20 65 50 105 114 140 4-q)6.5
    GU-25A 25 70 55 105 114 140 4-q)6.5
    GU-32A 32 90 70 125 140 160 4-q)9
    GU-40A 40 100 80 130 165 160 4-q)9
    GU-50A 50 110 90 145 175 160 4-q)9
    GU-63A 63 130 110 160 200 185 4-q)9
    GU-80A 80 145 125 180 230 205 8-q)9
    GU-100A 100 165 145 189 250 260 8-q)9
    GU-125A 125 200 175 232 295 360 8-(p11
    GU-150A 150 225 200 250 320 400 8-(p11
    GU-200A 200 285 260 306 390 620 12-q)11



  • File size: 152.0KB
