GUQ-A series


Pneumatic vacuum (pressure) ball valve

GUQ-A series pneumatic vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is powered by compressed air, changes the direction of the air path by controlling the pneumatic components, pushes the mechanical movement of the piston rack and gear, and drives the ball valve to open and close with angular stroke output torque. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The cylinder is divided into double-acting and single-acting (spring return), optional feedback signal device and electric valve positioner. The applicable working medium is gas or liquid with acid and alkali.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Pneumatic vacuum (pressure) ball valve
    • Commodity ID: C-005
    • 型号: GUQ-A series

    GUQ-A series pneumatic vacuum (pressure) ball valve is suitable for connecting or cutting off the medium flow in the pipeline in the vacuum system. The valve is powered by compressed air, changes the direction of the air path by controlling the pneumatic components, pushes the mechanical movement of the piston rack and gear, and drives the ball valve to open and close with angular stroke output torque. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The cylinder is divided into double-acting and single-acting (spring return), optional feedback signal device and electric valve positioner. The applicable working medium is gas or liquid with acid and alkali.

    • Scope of application (Pa) Quick release flange (KF) 2×105 ~1.3×10-6 Loose flange 6×105 ~1.3×10-6
    • Valve leakage rate (Pa.L/S) ≤1.3×10-6
    • Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
    • Air source pressure (MPa) 0.4~0.8
    • Flange standard GB4982-2003; GB/T6070-1995
    • Installation position arbitrary
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: DC12V, etc.
    • Signal feedback and explosion-proof special designation: limited signal switch explosion-proof signal switch explosion-proof solenoid valve coil intelligent positioner (4-20mA)

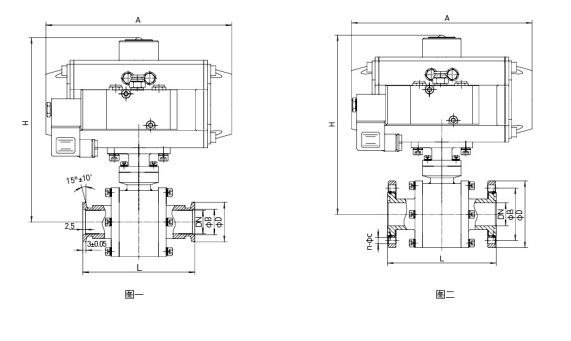

  • (图一)外形及快卸法兰连接尺寸



    modle diameter(DN) φD φB H L A Flange standard
    GUQ-10A/KF 10 30 12.2 158 92 154 GB/T4982-2003
    GUD-16A/KF 16 30 17.2 158 100 154
    GUD-25A/KF 25 40 26.2 203 114 189
    GUD-32A/KF 32 55 41.2 230 140 229 /
    GUD-40A/KF 40 55 41.2 253 165 229 GB/T4982-2003
    GUD-50A/KF 50 75 52.2 264 175 266 /

    (Picture 2) Shape and dimension of looper flange connection



    modle diameter(DN) φD (pB H L A n-φc Flange standard
    GUQ-10A 10 55 40 158 92 154 4-φ6.5 GB/T6070-1995
    GUQ-16A 16 60 45 158 100 154 4-φ6.5
    GUQ-20A 20 65 50 203 114 189 4-φ6.5
    GUQ-25A 25 70 55 203 114 189 4-φ6.5
    GUQ-32A 32 90 70 230 140 229 4-φ9
    GUQ-40A 40 100 80 253 160 229 4-φ9
    GUQ-50A 50 110 90 264 175 266 4-φ9
    GUQ-63A 63 130 110 278 186 266 4-φ9
    GUQ-80A 80 145 125 330 198 337 8-φ9
    GUQ-100A 100 165 145 360 220 337 8-φ9
    GUQ-125A 125 200 175 451 266 412 8-φ11
    GUQ-150A 150 225 200 505 296 488 8-φ11
    GUQ-200A 200 285 260 606 390 602 12-φ11
    GUQ-250A 250 335 310 667 470 672 12-φ11
    GUQ-300A 300 425 395 771.5 530 784 12-φ14



  • File size: 189.2KB
