GUD-A series


Electric vacuum (pressure) ball valve

GUD-A series electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device, which can realize valve opening and closing by switching external power supply (manual index switch or computer control) or external input signal Or the control of the middle position, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The applicable working medium is gas or liquid with acid and alkali.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electric vacuum (pressure) ball valve
    • Commodity ID: C-006
    • 型号: GUD-A series

    GUD-A series electric vacuum (pressure) ball valve adopts rotary electric and electronic regulating valve driving device, which can realize valve opening and closing by switching external power supply (manual index switch or computer control) or external input signal Or the control of the middle position, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The valve is straight-through and sealed by a spherical surface, so it can be used in both vacuum and low pressure conditions, and can be installed in any position. The applicable working medium is gas or liquid with acid and alkali.



    • Scope of application (Pa) Quick release flange (KF) 2×105 ~1.3×10-6 Loose flange 6×105 ~1.3×10-6
    • Valve leakage rate (Pa.L/S) ≤1.3×10-6
    • Opening and closing time (S) DN≤32 20; DN≥40 30
    • Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
    • Flange standard GB4982-2003; GB/T6070-1995
    • Installation position any
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: AC380V; DC24V switch type 4-20mA DC regulation type: 1-5V DC regulation type
    • Signal feedback and explosion-proof standard factory: with passive contact type special designation: adjustable type 4 20mA DC; adjustable type 1-5V DC
    • Cylinder optional Standard factory: double-acting Special designation: single-acting (with spring return) optional normally open or normally closed


    ●Main parts materials

    Body Ball 304 or 316L Seal Reinforced PTFE

    Note: If there are special needs, the opening and closing time can be ≤6s; 10s; 15s, etc.





  •

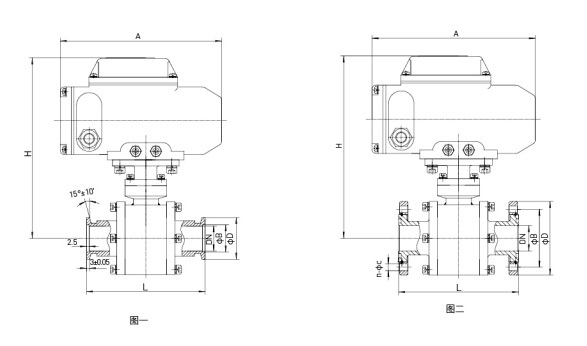

    (Figure 1) Outline and quick release flange connection dimensions



    modle diameter(DN) φD φB H L A Flange standard
    GUD-10A/KF 10 30 12.2 220 92 166 GB/T4982-2003
    GUD-16A/KF 16 30 17.2 220 100 166
    GUD-25A/KF 25 40 26.2 225 114 166
    GUD-32A/KF 32 55 41.2 235 140 166 /
    GUD-40A/KF 40 55 41.2 240 165 196 GB/T4982-2003
    GUD-50A/KF 50 75 52.2 250 175 196 /

    (Figure 2) Appearance and dimension of looper flange connection



    modle diameter(DN) φD φB H L A n-φpc Flange standard
    GUD-10A 10 55 40 220 92 166 4-φ6.5 GB/T6070-1995
    GUD-16A 16 60 45 220 100 166 4-φ6.5
    GUD-20A 20 65 50 220 114 166 4-φ6.5
    GUD-25A 25 70 55 225 114 166 4-φ6.5
    GUD-32A 32 90 70 235 140 166 4-φ9
    GUD-40A 40 100 80 240 165 196 4-φ9
    GUD-50A 50 110 90 250 175 196 4-φ9
    GUD-63A 63 130 110 310 186 196 4-φ9
    GUD-80A 80 145 125 300 198 196 8-φ9
    GUD-100A 100 165 145 355 220 255 8-φ9
    GUD-125A 125 200 175 375 266 255 8-φ11
    GUD-150A 150 225 200 400 296 255 8-φ11
    GUD-200A 200 285 260 500 390 310 12-φ11
    GUD-250A 250 335 310 560 470 355 12-φ11
    GUD-300A 300 425 395 600 530 355 12-φ14
