GIQ-AB series


Pneumatic high vacuum butterfly valve

The pneumatic actuator of GIQ-AB series pneumatic high vacuum butterfly valve is powered by compressed air. The direction of the air path is changed by the electromagnetic reversing valve, the mechanical transmission of the piston rack and gear is driven, and the angular stroke output torque is used to drive the butterfly valve to open and close, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipeline. The valve plate of the valve adopts a clamping structure, which clamps the sealing ring of the valve plate, and has the function of fine-tuning the main seal. It is a new type of pneumatic high-vacuum butterfly valve controlled by a pneumatic actuator, which is divided into double-acting and single-acting (spring return) cylinders. Feedback signal device and electric valve positioner are optional. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Pneumatic high vacuum butterfly valve
    • Commodity ID: D-004
    • 型号: GIQ-AB series

    The pneumatic actuator of GIQ-AB series pneumatic high vacuum butterfly valve is powered by compressed air. The direction of the air path is changed by the electromagnetic reversing valve, the mechanical transmission of the piston rack and gear is driven, and the angular stroke output torque is used to drive the butterfly valve to open and close, so as to achieve the purpose of connecting or cutting off the air flow in the vacuum pipeline. The valve plate of the valve adopts a clamping structure, which clamps the sealing ring of the valve plate, and has the function of fine-tuning the main seal. It is a new type of pneumatic high-vacuum butterfly valve controlled by a pneumatic actuator, which is divided into double-acting and single-acting (spring return) cylinders. Feedback signal device and electric valve positioner are optional. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa) 105~1.3×10-6
    • Valve leakage rate (Pa.L/S) ≤1.3×10-7
    • Medium temperature (°C) -25~+80 (the sealing material is NBR) -30~+150 (the sealing material is fluororubber)
    • Valve main parts material stainless steel or carbon steel
    • Air source pressure (MPa) 0.4~0.8
    • Flange standard GB/T6070
    • Installation position any
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: optional ①AC110V; ②DC24V; ③DC12V, etc.
    • Signal feedback Standard factory: valve position indicator Special designation: ① Micro switch ② Intelligent 4~20mA DC ③ Explosion-proof micro switch
    • Cylinder optional Standard factory: double-acting Special designation: single-acting (with spring return) Optional normally open or normally closed



  •

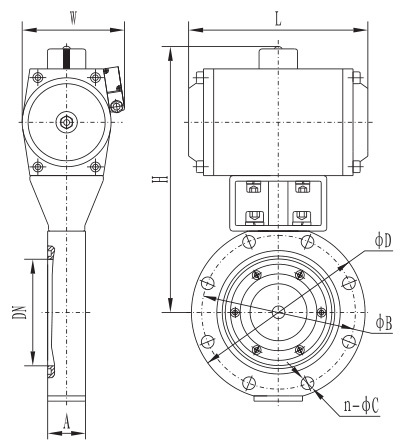

    Connection and Dimensions

    model

    diameter(DN)

    ΦD

    ΦB

    H

    A

    L

    W

    n-ΦC

    GIQ-50AB

    50

    110

    90

    183

    26

    147

    89.5

    4-Φ9

    GIQ-63AB

    63

    130

    110

    209

    32

    168

    GIQ-80AB

    80

    145

    125

    221

    140

    8-Φ9

    GIQ-100AB

    100

    165

    145

    231

    GIQ-125AB

    125

    200

    175

    273

    35

    229

    8-Φ11

    GIQ-150AB

    150

    225

    200

    319

    264

    166

    GIQ-200AB

    200

    285

    260

    363

    45

    266

    185

    12-Φ11

    GIQ-250AB

    250

    335

    310

    439

    50

    377

    223

    GIQ-300AB

    300

    425

    395

    505

    55

    412

    245

    12-Φ14

    GIQ-400AB

    400

    510

    480

    596

    60

    488

    262

    16-Φ14

    GIQ-500AB

    500

    600

    565

    751

    80

    672

    356

    12-Φ18



    Note: GIQ-500AB; GIQ-600AB flange connection is JB919 standard.
