GID series


Electric high vacuum butterfly valve

GID series electric high-vacuum butterfly valve adopts rotary electric and electronically adjustable valve drive device, which can realize valve opening, closing or intermediate position through switching of external power supply (manual index switch or computer control) or external input signal. Control, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electric high vacuum butterfly valve
    • Commodity ID: G-005
    • 型号: GID series

    GID series electric high-vacuum butterfly valve adopts rotary electric and electronically adjustable valve drive device, which can realize valve opening, closing or intermediate position through switching of external power supply (manual index switch or computer control) or external input signal. Control, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa)105 ~1.3×10-6
    • Valve leakage rate (Pa.L/S)≤1.3×10-7
    • Opening and closing time (S) DN≤63 20; 80≤DN≤200 30; DN≥250 48
    • Medium temperature (°C -25~+80 (the sealing material is NBR) -30~+150 (the sealing material is fluororubber)
    • Main parts of the valve are made of stainless steel or carbon steel
    • Flange standard JB919
    • Any installation position
    • Power supply voltage standard factory: AC220V/50Hz Special designation: DC24V
    • Control circuit standard factory: AC220V/50Hz switch type Special designation: optional ①DC24V switch type ②4~20mA DC regulation type ③1~5V DC regulation type
    • Signal feedback can be selected separately



  •

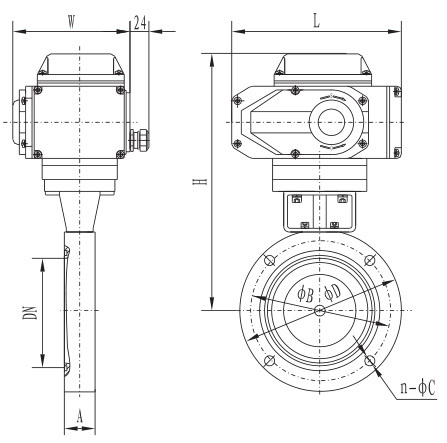

    Connection and Dimensions

    model

    diameter (DN)

    ΦD

    ΦB

    H

    A

    L

    W

    n-ΦC

    GID-25

    25

    70

    55

    199

    22

    160

    113

    4-Φ7

    GID-32

    32

    78

    64

    202

    GID-40

    40

    85

    70

    206

    GID-50

    50

    110

    90

    220

    4-Φ9

    GID-63

    63

    130

    110

    229

    26

    GID-80

    80

    145

    125

    273

    30

    196

    121

    GID-100

    100

    170

    145

    285

    4-Φ12

    GID-125

    125

    195

    170

    299

    35

    GID-150

    150

    220

    195

    368

    255

    159

    8-Φ12

    GID-200

    200

    275

    250

    394

    40

    GID-250

    250

    330

    300

    426

    45

    GID-300

    300

    380

    350

    449

    55

    8-Φ14

    GID-400

    400

    500

    465

    549

    60

    310

    211

    8-Φ18



    Note: GID-63 flange connection is GB/T6070 standard
