GID-A series


Electric high vacuum butterfly valve

GID-A series electric high-vacuum butterfly valve adopts rotary electric and electronically adjustable valve drive device, which can realize valve opening, closing or intermediate through switching of external power supply (manual index switch or computer control) or external input signal. Position control, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The valve plate of the valve adopts a clamping structure, which clamps the sealing ring of the valve plate, and has the function of fine-tuning the main seal. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electric high vacuum butterfly valve
    • Commodity ID: G-006
    • 型号: GID-A series

    GID-A series electric high-vacuum butterfly valve adopts rotary electric and electronically adjustable valve drive device, which can realize valve opening, closing or intermediate through switching of external power supply (manual index switch or computer control) or external input signal. Position control, so as to achieve the purpose of turning on or cutting off the air flow in the vacuum pipeline. The valve plate of the valve adopts a clamping structure, which clamps the sealing ring of the valve plate, and has the function of fine-tuning the main seal. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa)105~1.3X10-6
    • Valve leakage rate (Pa.L/S)≤1.3×10-7
    • Opening and closing time (S) DN≤63 20; 80≤DN≤200 30; DN≥250 48
    • Medium temperature (°C) -25~+80 (the sealing material is NBR) -30~+150 (the sealing material is fluororubber)
    • Main parts of the valve are made of stainless steel or carbon steel
    • Flange standard GB/T6070
    • Any installation position
    • Power supply voltage standard factory: AC220V/50Hz Special designation: DC24V
    • Control circuit standard factory: AC220V/50Hz switch type Special designation: optional ①DC24V switch type ②4~20mA DC regulation type ③1~5V DC regulation type
    • Signal feedback can be selected separately
    • Note: If there are special needs, the opening and closing time can be ≤6s; 10s; 15s, etc.
  •

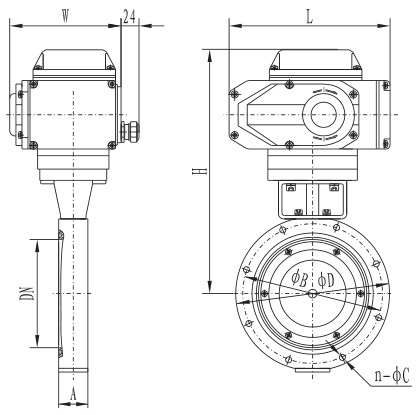

    Connection and Dimensions
