DDC-JQ series


electromagnetic vacuumwith inflation valve

DDC-JQ series electromagnetic vacuum filling valve is a special valve installed on the mechanical vacuum pump. The valve and the pump are connected to the same power source, and the opening and stopping of the pump directly control the opening and closing of the valve. When the pump stops working or the power supply is interrupted suddenly, the valve can automatically close the vacuum system and fill the air into the pump cavity through the pump inlet to avoid the backflow of pump oil from polluting the vacuum system. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: electromagnetic vacuumwith inflation valve
    • Commodity ID: E-001
    • 型号: DDC-JQ series

    DDC-JQ series electromagnetic vacuum filling valve is a special valve installed on the mechanical vacuum pump. The valve and the pump are connected to the same power source, and the opening and stopping of the pump directly control the opening and closing of the valve. When the pump stops working or the power supply is interrupted suddenly, the valve can automatically close the vacuum system and fill the air into the pump cavity through the pump inlet to avoid the backflow of pump oil from polluting the vacuum system. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa) 105~1X10-3
    • Valve leakage rate (Pa.L/S) <6.7×10-4
    • Applicable temperature (℃) -25~+50
    • Coil temperature rise (°C) ≤65
    • Opening and closing time (S) ≤3
    • Power supply voltage (V/Hz) 220/50
    • Flange standard JB919



  •

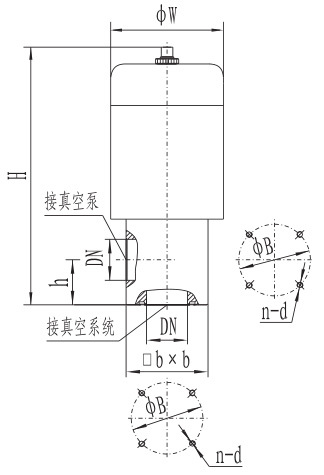

    Connection and Dimensions

    model  diameter(DN) ΦW ΦB H h bxb n-d Matching mechanical pump model
    DDC-JQ16A

    16

    68 42 176 28 48×48 4-M5 2XZ-0.5/1
    DDC-JQ25A 25 82 55 199 35 58×58 4-M6 2XZ-2/4
    DDC-JQ32 32 92 64 226 40 68×68 4-M6 2XZ-4
    DDC-JQ40 40 110 70 245 44 80×80 4-M6 2XZ-8
    DDC-JQ50A 50 125 90 290 56 95×95 4-M8 2X-15
    DDC-JQ65 65 135 105 320 65 115×115 4-M8 2X-30A
    DDC-JQ80 80 165 125 367 75 140×140 4-M8 2X-70A



  • File size: 141.4KB
