DDC-JQ-B serise


electromagnetic vacuumwith inflation valve

DDC-JQ-B series electromagnetic vacuum filling valve is a special valve installed on the mechanical vacuum pump. The valve and the pump are connected to the same power source, and the opening and stopping of the pump directly control the opening and closing of the valve. When the pump stops working or the power supply is interrupted suddenly, the valve can automatically close the vacuum system and fill the air into the pump cavity through the pump inlet to avoid the backflow of pump oil from polluting the vacuum system. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: electromagnetic vacuumwith inflation valve
    • Commodity ID: E-002
    • 型号: DDC-JQ-B serise

    DDC-JQ-B series electromagnetic vacuum filling valve is a special valve installed on the mechanical vacuum pump. The valve and the pump are connected to the same power source, and the opening and stopping of the pump directly control the opening and closing of the valve. When the pump stops working or the power supply is interrupted suddenly, the valve can automatically close the vacuum system and fill the air into the pump cavity through the pump inlet to avoid the backflow of pump oil from polluting the vacuum system. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa) 105 ~1×10-3
    • Valve leakage rate (Pa.L/S) <6.7×10-4
    • Applicable temperature (℃) -25~+50
    • Coil temperature rise (°C) ≤65
    • Opening and closing time (S) ≤3
    • Power supply voltage (V/Hz) 220/50



  •

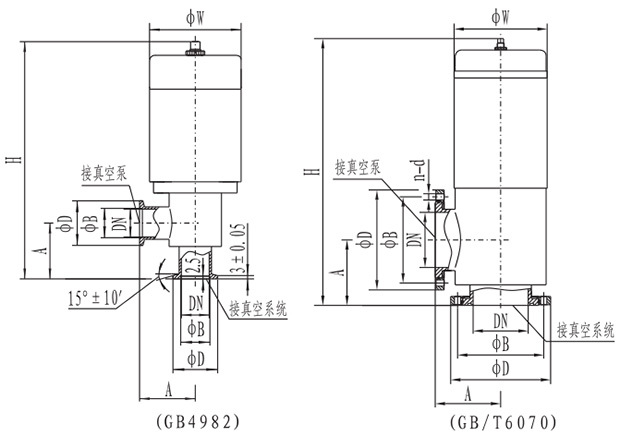

    Connection and Dimensions

    model

     diameter (DN)

    ΦW

    ΦD

    ΦB

    H

    A

    n-d

    Flange standard

    DDC-JQ16B/KF

    16

    68

    30

    17.2

    191

    40

    /

    GB4982

    DDC-JQ25B/KF

    25

    82

    40

    26.2

    216

    50

    DDC-JQ32B/KF

    32

    92

    55

    41.2

    244

    50

    DDC-JQ40B/KF

    40

    110

    55

    41.2

    275

    65

    DDC-JQ50B/KF

    50

    125

    75

    52.2

    314

    80

    /

    DDC-JQ50B

    50

    125

    110

    90

    314

    80

    4-Φ9

    GB/T6070

    DDC-JQ65B

    65

    135

    130

    110

    343

    88

    4-Φ9

    DDC-JQ80B

    80

    165

    145

    125

    399

    95

    8-Φ9

    DDC-JQ100B

    100

    165

    165

    145

    399

    108

    8-Φ9

    DDC-JQ150

    150

    165

    220

    195

    477

    138

    8-Φ11





    Note:  DDC-JQ100B matches slide valve vacuum pump model H-150

               DDC-JQ32B/KF flange adopts KF40 standard



  • File size: 141.4KB

Keyword:

Ultra high vacuum flapper valve

High vacuum flapper valve

Ordinary type high vacuum (pressure) ball valve

Type a high vacuum(pressure)ball valve

Butterfly valve

Vacuum charging valve Vacuum electromagnetic pressure difference type charging valve

Trimming valve

The diaphragm valve

Flow monitor

Vacuum pipeline accessories
