DYC-Q series


Low Vacuum Electromagnetic Pressure Differential Inflatable Valve

DYC-Q series low vacuum electromagnetic differential pressure charging valve is a special vacuum valve installed on the air inlet of mechanical vacuum pump. Its working principle is that the power supply of the mechanical pump and the power supply of the solenoid valve coil are connected to the same power supply. When the mechanical vacuum pump suddenly loses power and stops running due to work needs, the valve uses atmospheric pressure to automatically close the valve core and cut off the channel connected to the vacuum system. At the same time, air is released into the pump to prevent the mechanical pump oil from returning to the vacuum system, which plays a role in protecting the vacuum system and is conducive to the restart of the mechanical pump. The applicable working medium is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Low Vacuum Electromagnetic Pressure Differential Inflatable Valve
    • Commodity ID: E-005
    • 型号: DYC-Q series

    DYC-Q series low vacuum electromagnetic differential pressure charging valve is a special vacuum valve installed on the air inlet of mechanical vacuum pump. Its working principle is that the power supply of the mechanical pump and the power supply of the solenoid valve coil are connected to the same power supply. When the mechanical vacuum pump suddenly loses power and stops running due to work needs, the valve uses atmospheric pressure to automatically close the valve core and cut off the channel connected to the vacuum system. At the same time, air is released into the pump to prevent the mechanical pump oil from returning to the vacuum system, which plays a role in protecting the vacuum system and is conducive to the restart of the mechanical pump. The applicable working medium is air and non-corrosive gas.

    • Applicable range (Pa) 105~10-2
    • Valve leakage rate (Pa.L/S) ≤6.5×10-2
    • Medium temperature (℃) -25~+40
    • Opening and closing time ≤3
    • Mains voltage 220/50
    • Installation method Vertical
    • Optional explosion-proof coil



  •

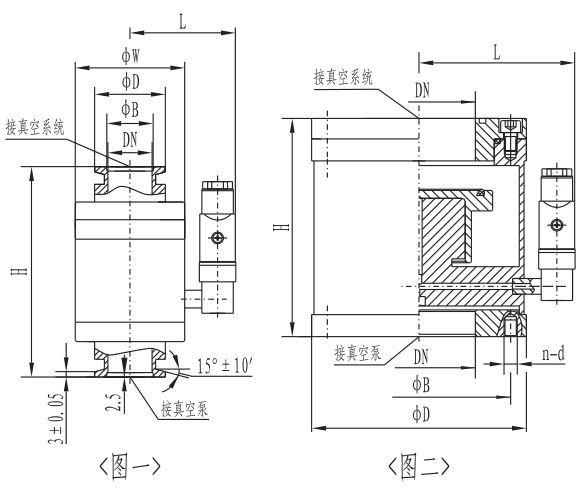

    (Figure 1) (KF) connection and dimensions (GB4982)

    model

     diameter(DN)

    ΦW

    ΦD

    ΦB

    H

    L

    Flange standard

    DYC-Q16/KF

    16

    60

    30

    17.2

    115

    72

    GB4982

    DYC-Q25/KF

    25

    70

    40

    26.2

    130

    76

    DYC-Q32/KF

    32

    90

    55

    41.2

    150

    85

    DYC-Q40/KF

    40

    100

    55

    41.2

    160

    90

    DYC-Q50/KF

    50

    110

    75

    52.2

    195

    95

    /



    Note: DYC-Q32/KF flange adopts KF40 standard

    (Picture 2) Connection and Dimensions (GB/T6070)



    model

     diameter (DN)

    ΦD

    ΦB

    H

    L

    n-d

    Flange standard

    DYC-Q16

    16

    60

    45

    75

    72

    4-M6

    GB/T6070

    DYC-Q25

    25

    70

    55

    90

    76

    DYC-Q32

    32

    90

    70

    100

    85

    4-M8

    DYC-Q40

    40

    100

    80

    110

    90

    DYC-Q50

    50

    110

    90

    123

    95

    DYC-Q65

    65

    125

    105

    147

    102

    DYC-Q80

    80

    145

    125

    145

    112

    DYC-Q100

    100

    165

    145

    140

    121

    8-M8

    DYC-Q125

    125

    200

    175

    185

    138

    8-M10

    DYC-Q150

    150

    220

    195

    211

    145

    DYC-Q160

    160

    225

    200

    211

    150

    DYC-Q200

    200

    285

    260

    240

    180

    12-M10

    DYC-Q250

    250

    335

    310

    290

    204



    Note: DYC-Q65 flange adopts JB919 standard
