CCD series


Electric ultra-high vacuum gate valve

The CCD series electric ultra-high vacuum plug-in valve is driven by the electric screw, the sealing shaft (rod) moves axially, pushes (pulls) the lifting mechanism, and drives the driving body to move in the axial direction. When the positioning plate moves to the stop When block, the sealing pressure plate and the support plate stop moving axially, and the steel ball lying in the ball socket of the sealing pressure plate and the support plate is pushed out of the ball socket by the driving body, so that the support plate and the sealing pressure plate deviate from the driving body and press toward the valve] The supporting surface and sealing surface of the flange, when the steel ball completely leaves the ball socket and is on the plane of the supporting plate and the sealing plate, the pressing force reaches the maximum, and the valve is completely closed. When the driving body is pulled to move backward, due to The friction force between the sealing pressure plate and the support plate and the flange surface is very large, the steel ball is pulled back to the ball socket by the driving body, and the sealing pressure plate and the support plate are pressed to the driving body under the action of the central spring, and follow the driving body - - to the same direction movement, away from the flange orifice, to fully open the valve. The applicable working medium is clean air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electric ultra-high vacuum gate valve
    • Commodity ID: A-003
    • 型号: CCD series

    The CCD series electric ultra-high vacuum plug-in valve is driven by the electric screw, the sealing shaft (rod) moves axially, pushes (pulls) the lifting mechanism, and drives the driving body to move in the axial direction. When the positioning plate moves to the stop When block, the sealing pressure plate and the support plate stop moving axially, and the steel ball lying in the ball socket of the sealing pressure plate and the support plate is pushed out of the ball socket by the driving body, so that the support plate and the sealing pressure plate deviate from the driving body and press toward the valve] The supporting surface and sealing surface of the flange, when the steel ball completely leaves the ball socket and is on the plane of the supporting plate and the sealing plate, the pressing force reaches the maximum, and the valve is completely closed. When the driving body is pulled to move backward, due to The friction force between the sealing pressure plate and the support plate and the flange surface is very large, the steel ball is pulled back to the ball socket by the driving body, and the sealing pressure plate and the support plate are pressed to the driving body under the action of the central spring, and follow the driving body - - to the same direction movement, away from the flange orifice, to fully open the valve. The applicable working medium is clean air and non-corrosive gas.

    • Applicable range (Pa) 105~1.3X10-7
    • Valve leakage rate (Pa.L/S) ≤1.3X10-7 when DN≤200, ≤6.7x10-7 when DN≥250
    • Valve baking temperature (C) ≤150 (except transmission)
    • When the valve is open, the pressure difference on both sides of the valve plate (Pa) ≤2.7X103
    • Power supply voltage Standard factory: AC220V/50Hz Special designation: ①AC110V; ②DC24V; ③DC12V, etc.
    • Open or close time S ≤≤50
  •

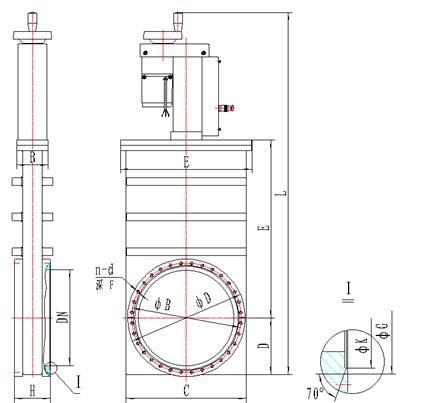

    Connection and Dimensions



    model diameter (DN) A B C D E H L M N φN
    CCD-80 80 166 77 140 61 210 60 530 84 104 50
    CCD-100 100 186 92 160 72 230 70 560 86 104 50
    CCD-150 150 234 92 207 96 307 78 673 86 114 50
    CCD-200 200 280 92 254 121 382 80 779 89 121 50
    CCD-250 250 342 100 312 148 462 92 892 89 121 50
    CCD-320 320 449 108 425 212 670 130 1196 94 140 50
    CCD-400 400 536 108 512 256 810 130 1391 94 140 50



    (Figure 1) GB-LP flange connection size



    modle CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    ΦD 68 85 105 165 208 258 328 410
    G 2.4 2.4 2.4 2.4 3.6 3.6 4.8 4.8
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    F 14 12 11.5 16 16 15 16 16
    I.D 67 85 106 165 206 258 325 406
    d 3.55 3.55 3.55 3.55 5.3 5.3 7 7



    图二)ISO-F法兰连接尺寸



    molde CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320 CC-400
    A 66 60 70 78 76 86 112 112
    ΦB 130 145 165 225 285 335 425 512
    ΦC 110 125 145 200 260 310 395 480
    DN 63 80 100 150 200 250 320 400
    n 4 8 8 8 12 12 12 16
    d M8 M8 M8 M10 M10 M10 M12 M12
    G 3 3 3 3 3 3 4.5 4.5
    ΦD 10.2 83.2 102.2 153.2 213.2 261.2 325 400.2
    F 10 10 15 15 15 15 16 16



    (Figure 3) CF flange connection size



    型号 CC-63 CC-80 CC-100 CC-150 CC-200 CC-250 CC-320
    通径(DN) 63 80 100 150 200 250 320
    A 66 70 70 78 80 92 120
    ΦB 114 130 152 202 253 305 425
    ΦC 92.2 110 130.3 181 231.8 284 338.1
    ΦK 82.4 99 120.6 171.4 222.1 273.1 326.4
    ΦG 77 93 115 166 217 267 320
    n-d 8-M8 16-M8 16-M8 20-M8 24-M8 32-M8 32-M10
    F 11 13 12 14 14 15 18
