GQC series


electromagnetichigh vacuumwith inflation valve

GQC-1.5, GQC-5 series electromagnetic high vacuum inflatable valve is driven by electromagnetic force. When the power is turned on, the valve is closed to isolate the vacuum system from the atmosphere. When the power is cut off, the valve is in the open state, and the atmosphere The vacuum system is introduced from the outside. GQC-4A series electromagnetic high vacuum inflation valve has two functions of power-on and power-off. There is an air filter inside the valve, which can be used to inflate the vacuum system. The applicable medium of the valve is air and non-corrosive gas.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: electromagnetichigh vacuumwith inflation valve
    • Commodity ID: E-003
    • 型号: GQC series

    GQC-1.5, GQC-5 series electromagnetic high vacuum inflatable valve is driven by electromagnetic force. When the power is turned on, the valve is closed to isolate the vacuum system from the atmosphere. When the power is cut off, the valve is in the open state, and the atmosphere The vacuum system is introduced from the outside. GQC-4A series electromagnetic high vacuum inflation valve has two functions of power-on and power-off. There is an air filter inside the valve, which can be used to inflate the vacuum system. The applicable medium of the valve is air and non-corrosive gas.

    • Model GQC-1.5 GQC-5 GQC-5/KF GQC-4A
      Applicable range (Pa) 105 ~1.3×10-4
      Valve leakage rate (Pa.L/S) ≤1.3×10-4
      Flange standard welding connection; GB4982
      Standard factory, the valve is open when the power is off

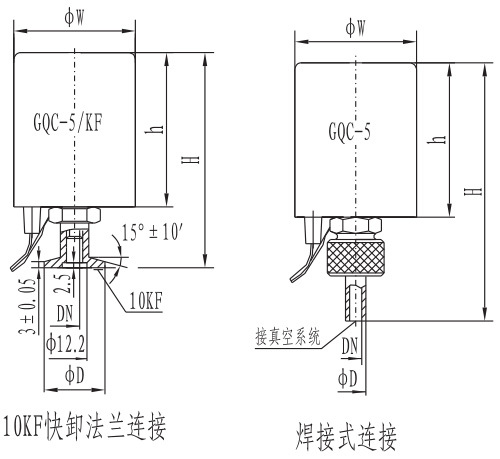

  • Connection and Dimensions

    model diameter(DN) ΦW ΦD H h Electrical parameters
    power supply power
    GQC-1.5 1.5 52 7 112 68 DC36V 3.3W
    GQC-5 5 60 10 136 90 DC36V 6.5W
    GQC-5/KF 5 60 30 119 90 DC36V 6.5W
    GQC-4A 4 Dimensions as shown DC36V 3.6W
    AC220V



  • File size: 154.4KB
