GDC-Q5、GDC series


Electromagnetic vacuum valve

C-Q5 electromagnetic high vacuum belt charging valve is connected to the high and low vacuum system, the valve is powered on and the valve is opened, and the charging port is closed at the same time, and the P and A end pipelines are connected; when the power is off, the valve plate is closed, and the P and A ends are cut off. Pipeline to ensure the vacuum of the system, and at the same time open the inflation port, and inflate the A end through the F end. GDC-5 electromagnetic high vacuum flapper valve is connected to the high and low vacuum pipelines to connect or cut off the air flow of the vacuum system. GDC-Q5 and GDC-5 vacuum valves are suitable for clean air and non-corrosive gases.

Product Consultation
  • Technical Parameters
  • Dimensions
  • Electronic sample download
    • Commodity name: Electromagnetic vacuum valve
    • Commodity ID: E-003-1
    • 型号: GDC-Q5、GDC series

    C-Q5 electromagnetic high vacuum belt charging valve is connected to the high and low vacuum system, the valve is powered on and the valve is opened, and the charging port is closed at the same time, and the P and A end pipelines are connected; when the power is off, the valve plate is closed, and the P and A ends are cut off. Pipeline to ensure the vacuum of the system, and at the same time open the inflation port, and inflate the A end through the F end. GDC-5 electromagnetic high vacuum flapper valve is connected to the high and low vacuum pipelines to connect or cut off the air flow of the vacuum system. GDC-Q5 and GDC-5 vacuum valves are suitable for clean air and non-corrosive gases.

    • Model GDC-Q5 GDC-5
    • Diameter (DN) 5
    • Applicable range (Pa) 105~6.7×10-4
    • Valve leakage rate (Pa.L/S)≤1.3×10-4
    • Power supply voltage (V/Hz) 220/50
    • Coil temperature rise (℃) ≤ 65
    • Any installation position
    • Connection standard (1) GB4982; (2) Welded connection



  •

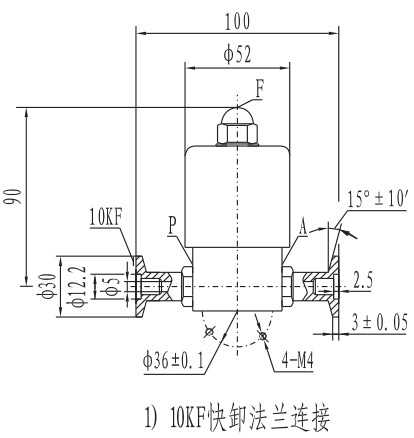

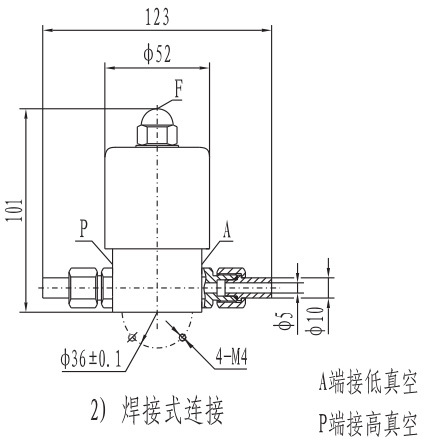

    Connection and Dimensions

  • File size: 523.4KB

Keyword:

Ultra high vacuum flapper valve

High vacuum flapper valve

Ordinary type high vacuum (pressure) ball valve

Type a high vacuum(pressure)ball valve

Butterfly valve

Vacuum charging valve Vacuum electromagnetic pressure difference type charging valve

Trimming valve

The diaphragm valve

Flow monitor

Vacuum pipeline accessories
